NETWORK    Technology
GSM / CDMA / HSPA / EVDO / LTE
LAUNCH    Announced    2018, February 25
Status    Available. Released 2018, March 09
BODY    Dimensions    147.7 x 68.7 x 8.5 mm (5.81 x 2.70 x 0.33 in)
Weight    163 g (5.75 oz)
Build    Glass front (Gorilla Glass 5), glass back (Gorilla Glass 5), aluminum frame
SIM    Single SIM (Nano-SIM) or Hybrid Dual SIM (Nano-SIM, dual stand-by)
     IP68 dust/water resistant (up to 1.5m for 30 min)
DISPLAY    Type    Super AMOLED, HDR10
Size    5.8 inches, 84.8 cm2 (~83.6% screen-to-body ratio)
Resolution    1440 x 2960 pixels, 18.5:9 ratio (~570 ppi density)
Protection    Corning Gorilla Glass 5
     3D Touch (home button only)
Always-on display
PLATFORM    OS    Android 8.0 (Oreo), upgradable to Android 10, One UI 2.5
Chipset    Exynos 9810 (10 nm) - EMEA
Qualcomm SDM845 Snapdragon 845 (10 nm) - USA/LATAM, China
CPU    Octa-core (4x2.7 GHz Mongoose M3 & 4x1.8 GHz Cortex-A55) - EMEA
Octa-core (4x2.8 GHz Kryo 385 Gold & 4x1.7 GHz Kryo 385 Silver) - USA/LATAM, China
GPU    Mali-G72 MP18 - EMEA
Adreno 630 - USA/LATAM, China
MEMORY    Card slot    microSDXC (uses shared SIM slot) - dual SIM model only
Internal    64GB 4GB RAM, 128GB 4GB RAM, 256GB 4GB RAM
     UFS 2.1
MAIN CAMERA    Single    12 MP, f/1.5-2.4, 26mm (wide), 1/2.55", 1.4µm, dual pixel PDAF, OIS
Features    LED flash, auto-HDR, panorama
Video    4K@30/60fps, 1080p@30/60/240fps, 720p@960fps, HDR, stereo sound rec., gyro-EIS & OIS (30fps)
SELFIE CAMERA    Dual    8 MP, f/1.7, 25mm (wide), 1/3.6", 1.22µm, AF
2 MP (dedicated iris scanner camera)
Features    Dual video call, Auto-HDR
Video    1440p@30fps
SOUND    Loudspeaker    Yes, with stereo speakers
3.5mm jack    Yes
     32-bit/384kHz audio
Tuned by AKG
COMMS    WLAN    Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct
Bluetooth    5.0, A2DP, LE, aptX
Positioning    GPS, GLONASS, BDS, GALILEO
NFC    Yes
Radio    FM radio (USA & Canada only)
USB    USB Type-C 3.1
FEATURES    Sensors    Iris scanner, fingerprint (rear-mounted), accelerometer, gyro, proximity, compass, barometer, heart rate, SpO2
     ANT+
Bixby natural language commands and dictation
Samsung Pay (Visa, MasterCard certified)
BATTERY    Type    Li-Ion 3000 mAh, non-removable (11.55 Wh)
Charging    15W wired, QC2
Wireless (Qi/PMA) (market dependent)

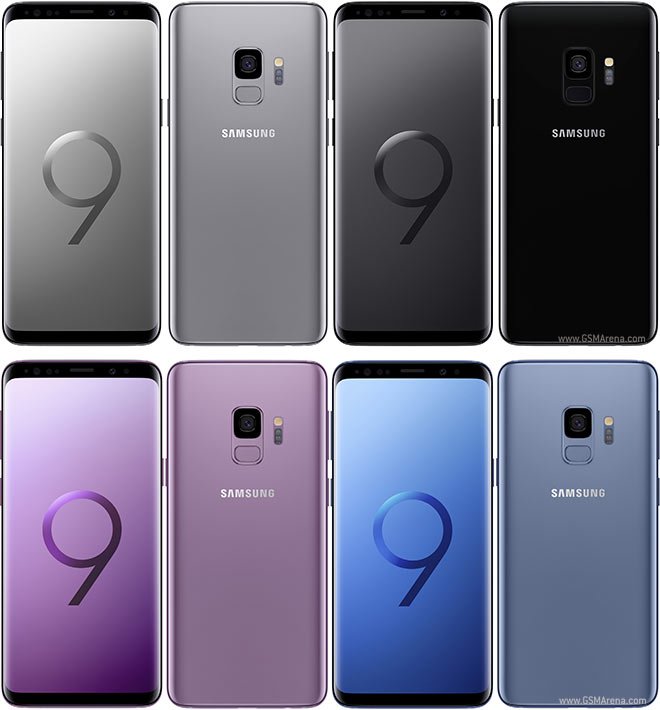

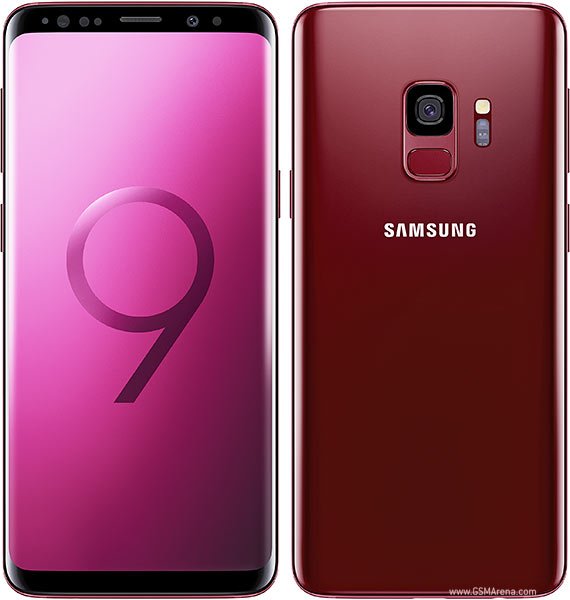

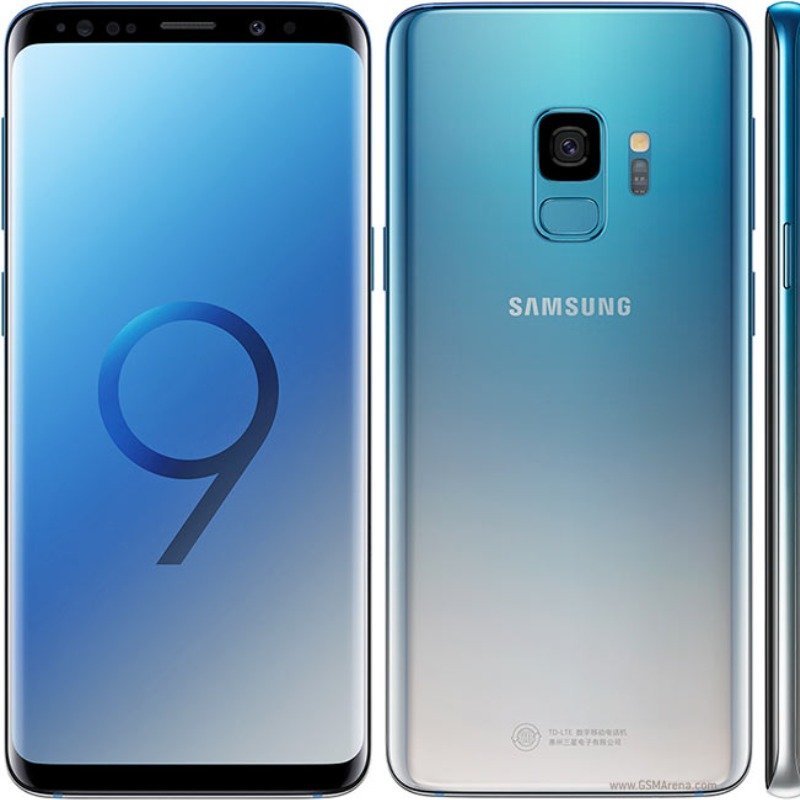

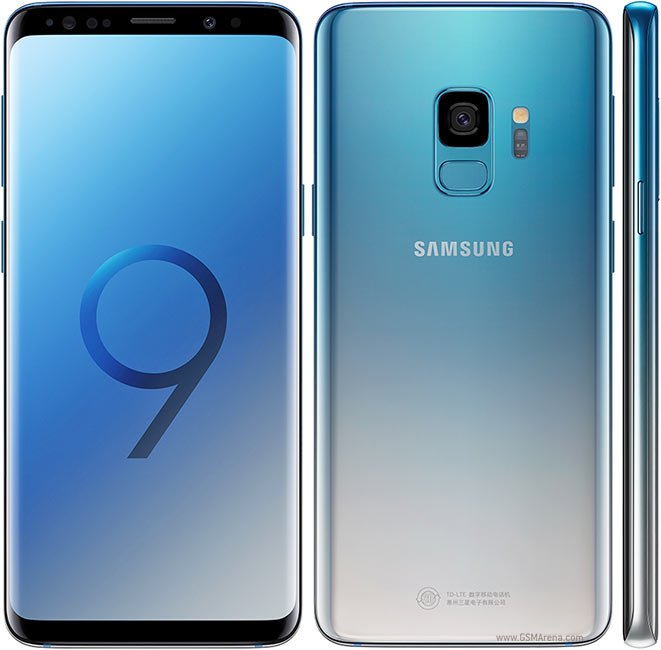

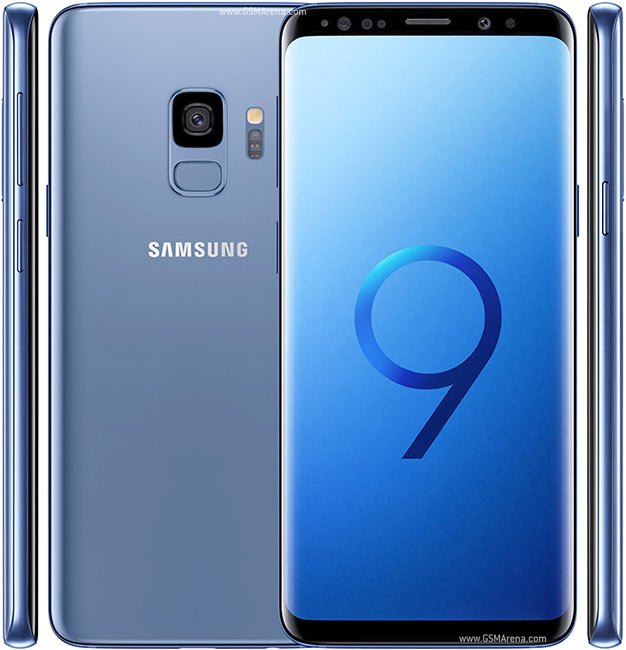

MISC    Colors    Midnight Black, Coral Blue, Titanium Gray, Lilac Purple, Burgundy Red, Sunrise Gold, Ice Blue
Models    SM-G960F, SM-G960, SM-G960F, SM-G960U, SM-G960W, SM-G9600, SM-G960U1, SM-G960N, SCV38, SM-G960X, SC-02K
SAR    0.63 W/kg (head)     0.96 W/kg (body)
SAR EU    0.36 W/kg (head)     1.18 W/kg (body)
